Active Emitter Power Supply

Login

Login to see pricing

The Active Emitter Power Supply is an external power supply that provides DC power to the Qt® Active Emitter through the Active Emitter Power Injector. It houses three 14/2 conductor cabling outputs that each power...
Share this

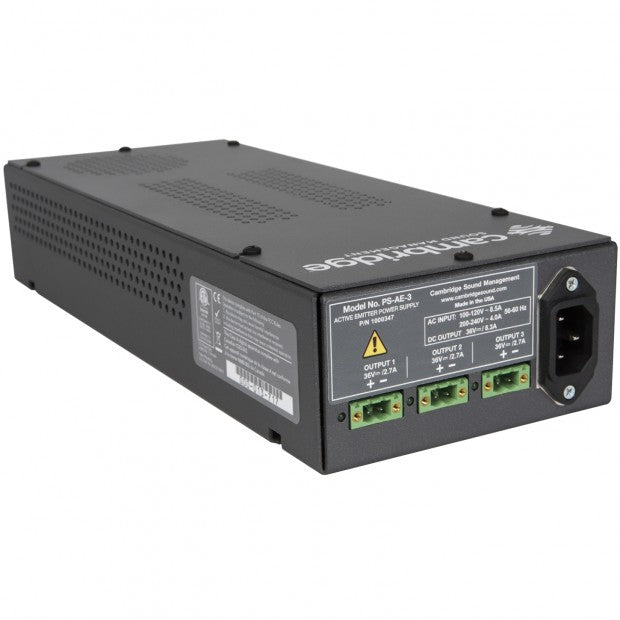

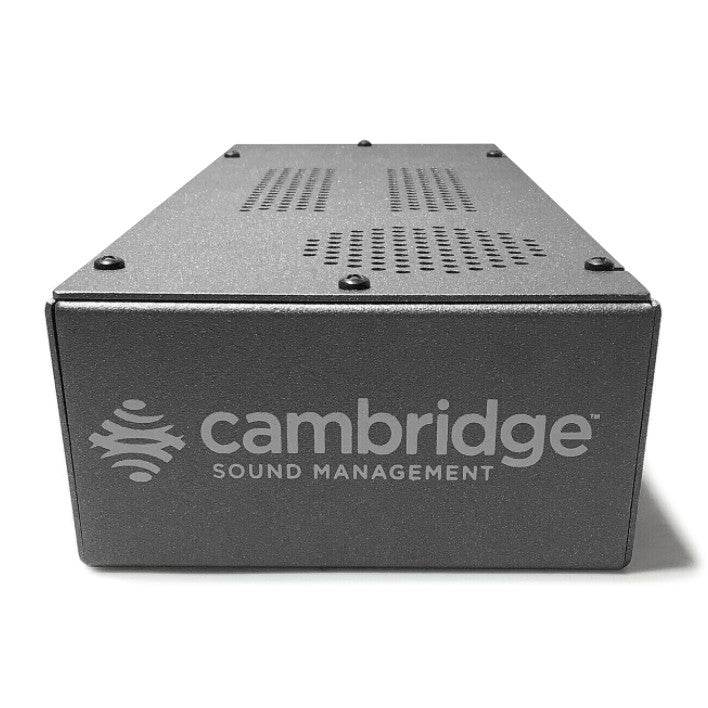

The Active Emitter Power Supply is an external power supply that provides DC power to the Qt® Active Emitter through the Active Emitter Power Injector. It houses three 14/2 conductor cabling outputs that each power up to 50 Qt Active Emitters for a total of 150 Active Emitter maximum. The Active Emitter Power supply is rack or wall mountable.

* Active Emitter Power Supply and Active Emitter Power Injector required for installation

FEATURES

  • Supplies power to Qt Active Emitters by way of Active Emitter Power Injector
  • Powers up to 150 Qt Active Emitters total
  • Houses three output connectors powering 50 Emitters per output
  • Utilizes 14/2 conductor cabling to power Qt Active Emitter Power Injector
  • Rack or wall mountable

SPECIFICATIONS

Input Power:

100-240V~ 4.0A, Automatic voltage range switching

No load power consumption

.5 Watt Max

peak inrush current

15/30A

Output Power

36 VDC +/- 10% 8.9A Maximum

Efficiency

88%

Number of Outputs

Qty (3) -Maximum load of Qty (50) Qt Active Emitters each

Each Output

2.9A Maximum

Auxillary 'power' input:

2.5 x 6.5 barrel jack, center positive

Output connector:

Qty (3) 2 - Conductor Captive Screw Type (Phoenix Style) Connectors. Accepts 12 to 24 AWG wire

Power on indication

Green indicator for each output, lit when power available at connector

Ouput overload/short circuit protection:

Auto recovery each output

Operating Temperature: 4-32 Degrees C
Operating Humidity: 40-90% RH (non condensing)
Operating Altitude <6600 Feet (2000M)


 RECOMMENDED CABLING TYPES:
14 AWG - 2 Conductor CMP/ NEC CL3P: West Penn #25226 Liberty #14-2C-P Belden #6100UE or Equivalent
